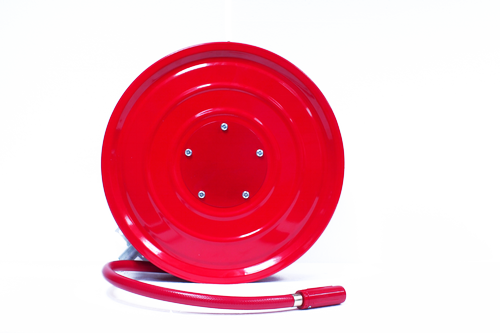

Geomast Manual Hose Reel



Geomast provides a complete range of manual hose reels swinging and fixed type in ¾” or 1" diameter.These hose reels are manually operated and are activated by opening an inlet valve enabling the water to flow through the 30 meter long hose. Geomast manual hose reels are available with a quick and easy installation mounting bracket which allows installation to be completed by one person.


These hose reels are designed and manufactured for wide range of applications such as for fixed wall installation, fire cabinets, wall mounted swinging operation, door mounting or fixed installations.


Geomast hose reels can be used without alteration for mounting with inlet to left/right or top/bottom of the hose reel, also it is fitted with specially designed glandless type drip proof seal.This gives maximum flexibility to suit an extensive range of architectural and installation requirements and makes it easy to install.


Geomast Manual hose reels are designed and manufactured to according to EN671 and EN694.



Key Features

  • Compact design with excellent flow characteristics
  • Supplied with Wall-mounting bracket
  • Geomast jet / spray /shut-off nozzle
  • Ready for surface or recess installations
  • Corrosion resistant coating

  • Maintenance free

  • Drum plate is finished in red polyester electrostatic powder coated
  • Fixed reels available with flexible inlet piping
  • Full Range of Hose Reel Cabinets
  • 5-Year Warranty

    Technical Drawing


    Technical Specifications

    • Hose length : 30 m
    • Hose : 19 mm and 25 mm diameter red hose, designed to standard EN 694
    • Hose Reel Depth: 270 mm
    • Drum diameter: 550 mm
    • Gross weight (without hose) : 14.5 kg
    • Paint finishing : Red Polyester - RAL3000
    • Pressure Test: 12 bar
    Please contact us for any documents and information needed.
